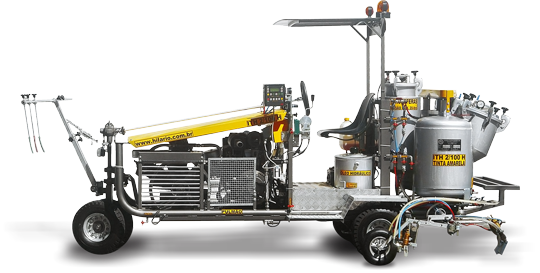

ITH 2/100

ITH 2/100

AUTONOMY OF 350m² OF PAINTING

DIESEL ENGINE OF 23Hp

02 TANKS IN STAINLESS STEEL WITH CAPACITY OF 100 LITERS

Suitable for cities, have electronic control panel, hydraulic traction, electric start and two (2) stainless steel tanks with a capacity of 100 liters each, being able to work with water-based ink. Its autonomy is about 3,5km from painting with 10cm range (equivalent 350m²).

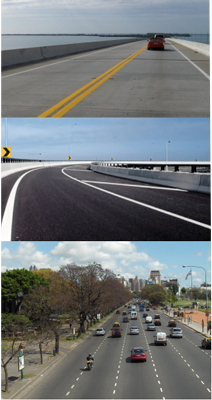

Main Indication: Cities, highways and local roads

ITH 2/100
  • Equipped with hydraulic motors on the rear wheels with negative pressure brakes for added security of the Operator and Third Parties.
  • Hydraulic control for moving the drive system for better accuracy in speed and safety of the equipment.
  • Traction and brake by hydraulic system
  • Diesel engine 23HP
  • 70PCM Compressor - 3 cylinders
  • Two mechanical guns
  • Two glass bead guns
  • One Manual gun with 10 meters of special twin hose for air and ink.
  • Two tanks in stainless steel paint with 100 liters each
  • Tank pressurized for glass bead
  • Four wheels 5,00 x 8 "
  • Individual hydraulic system for ink beater
  • Automatic interface - Electronic with 10 pre-set measures, and the variables unlimited.
  • Manometers - Mechanism immersed in glycerin
  • Electrical system 12V, alternator, battery 105Ah
  • Seat for the operator with setting the horizontal position, facilitating the painting operation.
  • Equipment Dimensions (WxDxH) - 1200 x 3300 x 1350mm
  • Total weight 1.170kg

OPTIONAL:

  • Trailer for transport
  • Pneumatic Gavel to Implementation of studs
  • Applicator set with two mechanical guns
