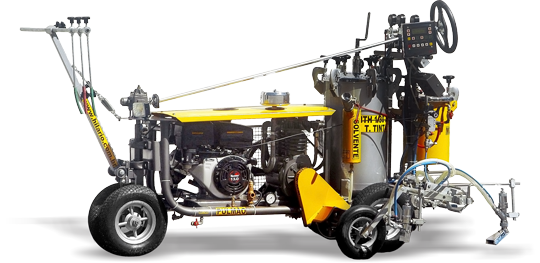

ITH 1/30 AP

ITH 1/30 AP

AUTONOMY OF 150M² OF PAINTING

PETROL ENGINE DE 13Hp

ONE TANK IN STAINLESS STEEL WITH CAPACITY OF 60 LITERS

Self-propelled, economic, perfectly meets the small labor demand and local municipalities with little work space. It features electronic control panel, electric start and stainless steel tank with 60 liters capacity and can work with ink water-based and 10 meters hose for air and ink. Its autonomy is about 1,5km from painting with 10cm range (equivalent 150m2).



Main Indication: Cities, Manual Service

ITH 1/30 AP
  • One mechanical gun
  • Vehicular steering box
  • One glass bead gun
  • Automatic digital Interface
  • Own traction - self-propelled
  • Electric Start
  • Petrol engine 13HP
  • Electrical System 12Vc with headlight
  • 30PCM compressor
  • Reservoir for Compressed air
  • Reservoir for glass bead
  • Reservoir for solvent
  • One manual gun with 10 meters special twin hose for air and ink.
  • Tank for stainless steel paint with 60 liters capacity
  • Aluminum wheels with bearings
  • Four wheels 3,50 x 8 "
  • Manometers – Mechanism immersed in glycerin
  • Pressure valve
  • Drain, safety and retention valve
  • Electro-pneumatic control
  • Precise alignment guide
